40×100 Horse Barn with 15×100 Lean-To
This 40×100 horse stall barn provides 4,000 square feet of covered space designed for horse housing, daily barn chores, and protected access along the full length of the building.
With a 15×100 lean-to, multiple Dutch doors, sliding stall doors, and entry points throughout the layout, this horse stall barn design supports efficient horse flow, ventilation, and practical day-to-day use.
204
40′ x 100′ x 11′
4,000 Sq. Ft.
Horse Stall Barn Layout
- 15′ × 100′ Lean-To
- Designed for horse access, shelter, and daily barn use
Horse Stall Barn Doors and Access Points

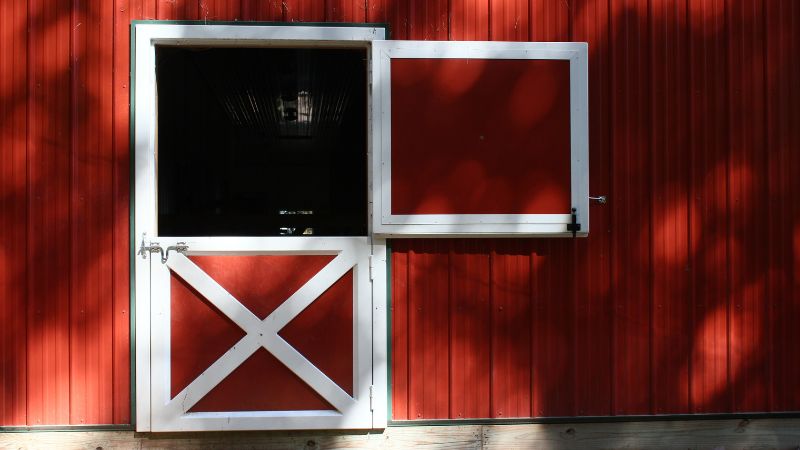

- 5—4′ × 7′ Wooden Dutch Doors with Crossbucks

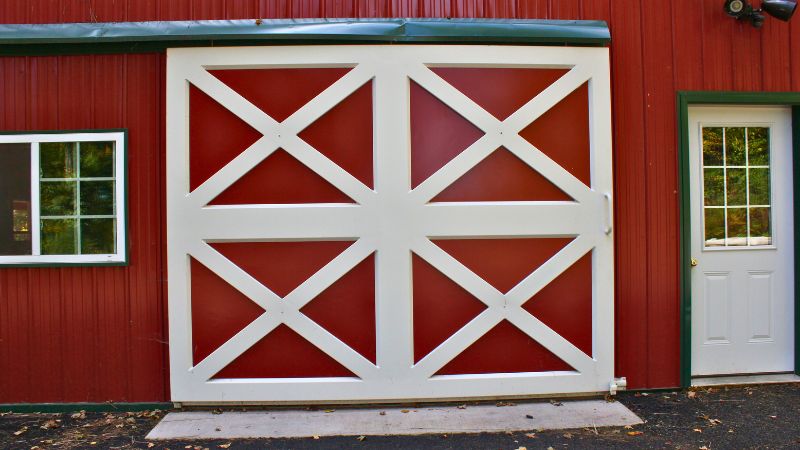

- 3—10′ × 8′ Sliding Doors with Crossbucks

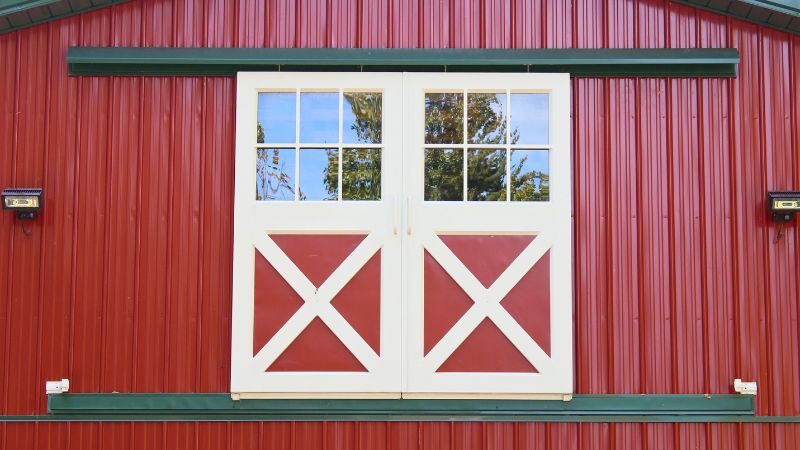

- 2—8′ × 8′ Split Sliding Doors with Crossbucks and Windows
- 2—36″ 9-Lite Entry Doors
Windows for Horse Stall Barn Ventilation
- 14—4′ × 3′ Sliding Windows
Exterior Features
- 12″ Eave and Gable Overhangs
- Seamless Rain Gutters
- 2—36″ Cupolas
Equine Features
- Horse-friendly access points throughout the barn
- Strong natural light and ventilation for daily equine use
- Lean-to coverage for shelter and barn-side access
Color Scheme
- Walls: Red
- Roof: Evergreen
- Trim: Evergreen
Looking for a similar design with a few changes?
Ideal Use for This Horse Stall Barn Layout
This configuration works well for:
- Horse barns with run access
- Private equine properties
- Breeding or boarding setups
- Daily horse care operations
- Barns needing long covered side access
