80×200 Indoor Riding Arena Horse Barn with Enclosed Stall Barn

This 80×200 indoor riding arena provides over 16,000 square feet of clear-span indoor space designed for year-round equine training, riding, and horse care operations.

The building includes a fully enclosed 34×160 lean-to barn area with stalls, tack rooms, wash stall, and support spaces. With 16′ sidewalls and multiple large sliding doors, the layout allows easy horse and equipment access while maintaining durable post-frame construction engineered for agricultural and equine use.

80x200 indoor riding arena horse barn with attached equine facility

Indoor horse arena building with large sliding doors and equine barn layout

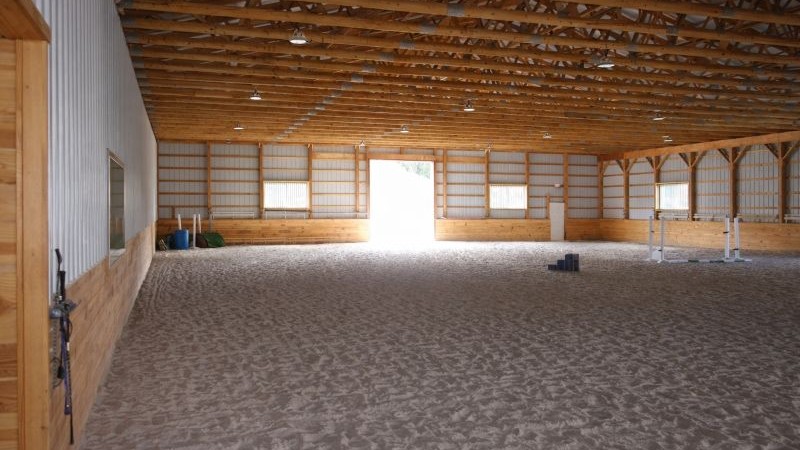

Large indoor riding arena with sand footing inside a post-frame horse barn

Horse barn layout center aisle with wooden horse stalls and overhead lighting

Wash stall with concrete floor and tie rings inside equine barn

Viewing window from horse barn looking into indoor riding arena

Loft overlooking stalls with wood railing and tack storage

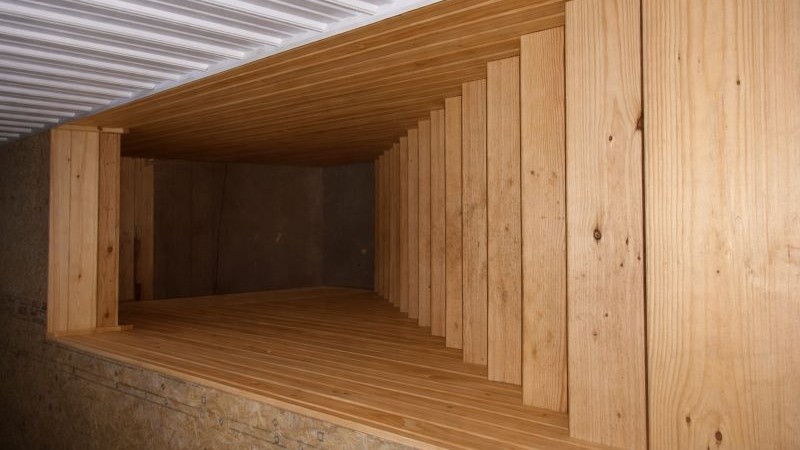

Wood staircase leading to horse barn loft storage area

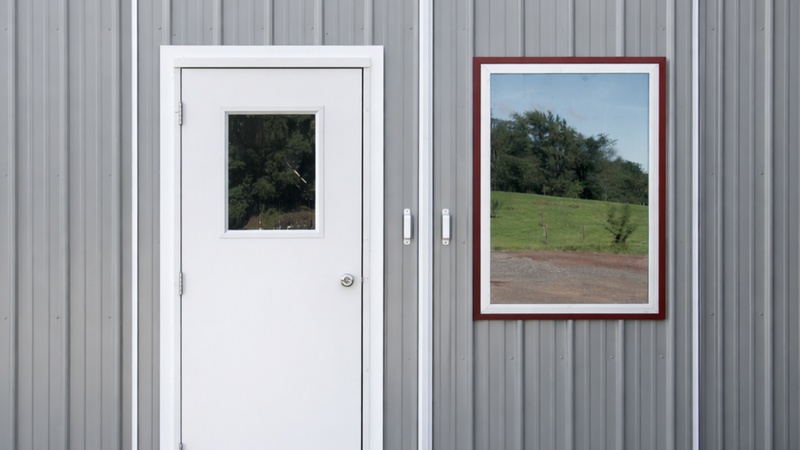

Metal horse barn exterior wall with white service door and window

Large indoor riding arena pole barn with red roof and lean-to stall barn

213

80’ x 200’ x 16’

16,000 Sq. Ft.

Indoor Riding Arena and Stall Barn Features

Doors

2—12′ × 14′ Split Sliding Doors w/ 3′ × 4′ Windows
2—12′ × 9′ Split Sliding Doors w/ 3′ × 4′ Windows
2—30″ × 68″ Solid Fiberglass Entry Doors (built into sliding doors)

Windows

10—7′6″ × 4′ Sliding Windows with grills and screens
13—Insulated Sliding Windows with grills – Arena Area
13—Insulated Sliding Windows with grills – Barn Area
1—8′ × 4′ Viewing Window

Exterior Features

12″ Eave and Gable Overhangs
Dutch Corners
6″ K-Style Gutters with Downspouts

Interior Concrete

4″ Concrete slab in alleys, tack rooms, and wash areas (4,000 PSI)

Interior Layout

23 – 10′ × 12′ Horse Stalls
10′ × 12′ Wash Stall
10′ × 12′ Tack Room (Uninsulated)
12′ × 20′ Insulated Tack Room
10′ × 12′ Partially Enclosed Grain Room
48″ High Kickwall with Rider Guard in Arena
12′ × 52′ Loft Area Above Tack, Alley, and Viewing Area

Color Scheme

Walls: Clay
Roof: Colonial Red
Trim: Colonial Red

Looking for a similar design with a few changes?

Customize this version here.

Ideal Use for This Layout

This configuration works well for:
Indoor horse training arenas
Boarding or training facilities
Private equestrian barns
Year-round riding operations
Combined arena and stall facilities

Explore More Equine Pole Buildings

Looking for more equine building designs, horse barn layouts, and indoor riding arena configurations?

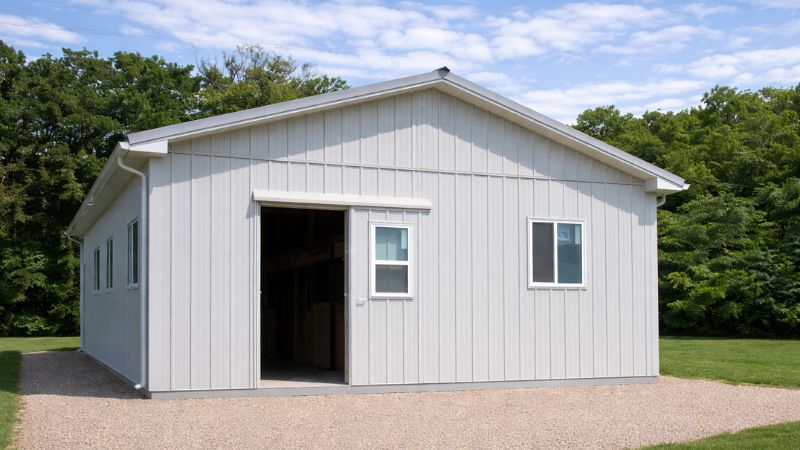

Compact equine shelter with feed stalls and sliding doors in bone white and ash gray
